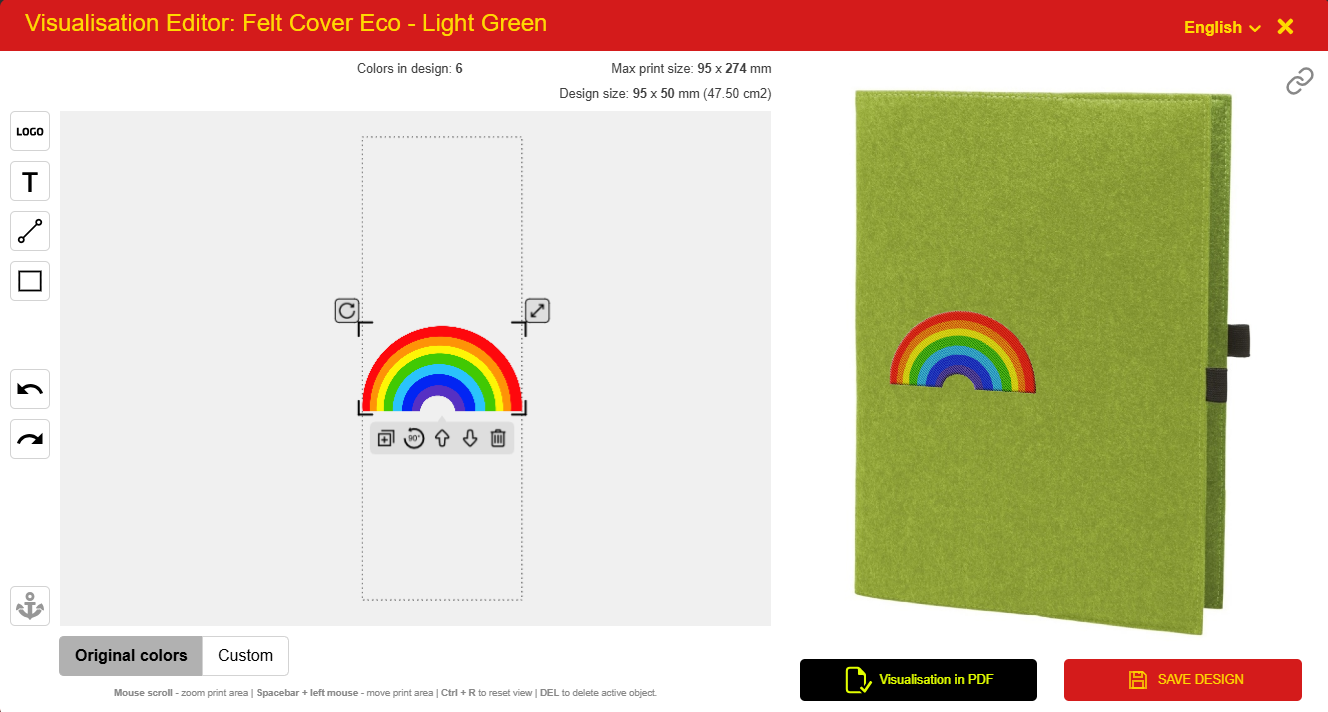

When a customer opens TronLogo Visualization Editor, there are two available options for what they can do with their design represented by the buttons in the right bottom corner. By default, those are:
"Visualisation in PDF" - will create and send a PDF with the visualization to the email provided by the customer.
"SAVE DESIGN" - saves design either for the current product or for all products in the shop.
If you are not satisfied with the default options, you can modify their design and functionality using the
Custom Editor Buttons feature
Please note that this is a premium feature and incurs an additional fee. If you're interested in activating it, contact our sales department at sales@promotron.com. Alternatively, you can click the designated button in your TronLogo administration panel, which will generate an email to our sales team automatically.

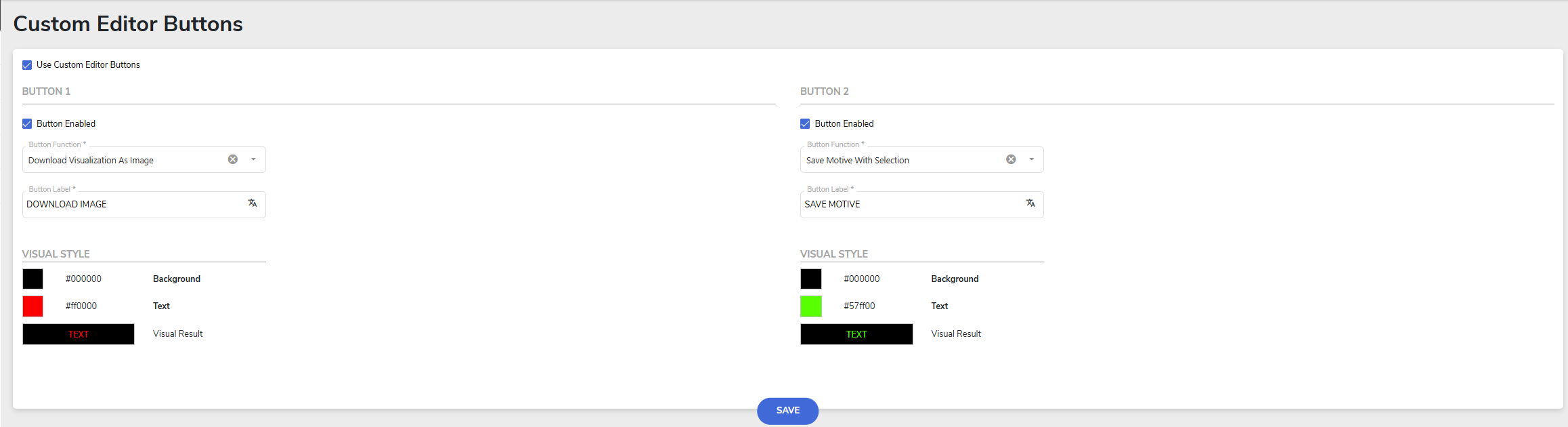

Once this feature is activated, your Custom Editor Buttons tab will look like this:
Editing buttons
Firstly there is a possibility to deactivate one of the buttons by toggling the "Button Enabled" fields.
As well for each button, you can customize the following:
Button Function
Select one of five options to define what the button does:
- Same Motive With Selection: Saves your design either for the current product or for all products in the shop.
- Quick Save Motive And Continue: Saves your design for the current product only.
- Create PDF Visualization: Send a PDF of the visualization to the provided email.
- Download Motive As Image: Download the logo as an image file.
-
Download Visualization As Image: Downloads the full visualization (logo on the product) as an image file.
Button Label

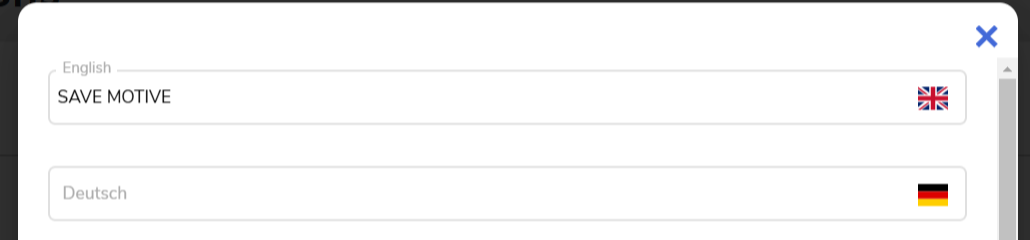

Enter the text to be displayed on the button. In case you have different language mutations don't forget to enter their translations, it can be done by clicking on the "Translations" icon and entering translations for used languages

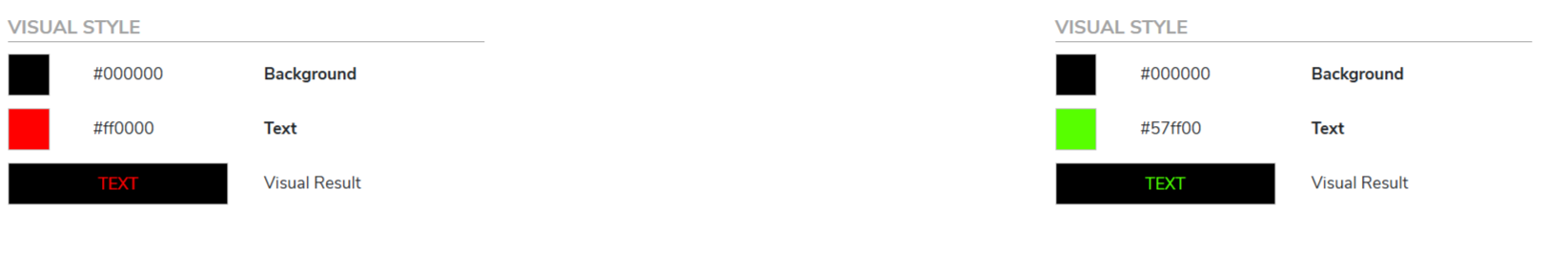

Visual Style
Customize the text and background colors of the button.

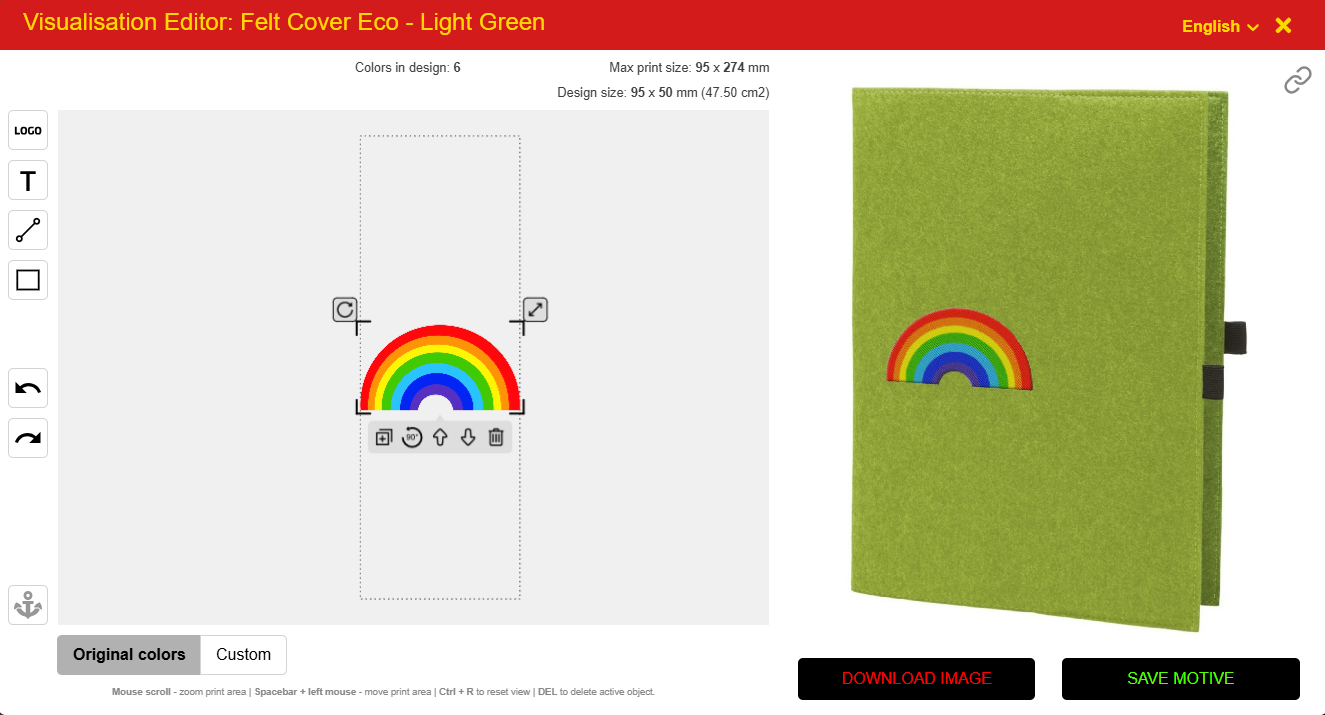

Changes will be previewed instantly in the interface. Based on the current settings shown above, the buttons in TronLogo will appear as illustrated
IMPORTANT NOTE

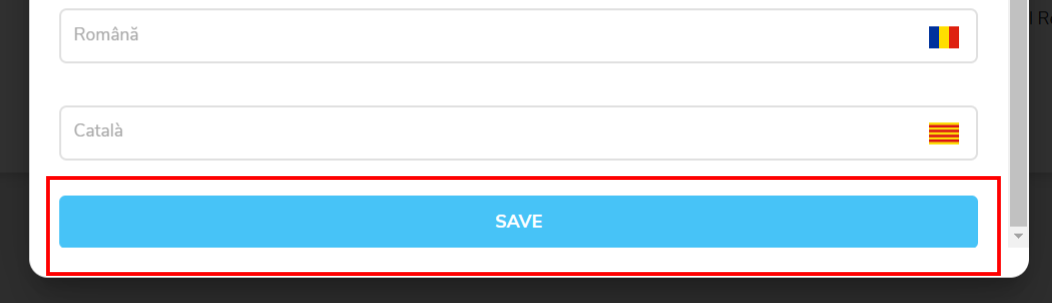

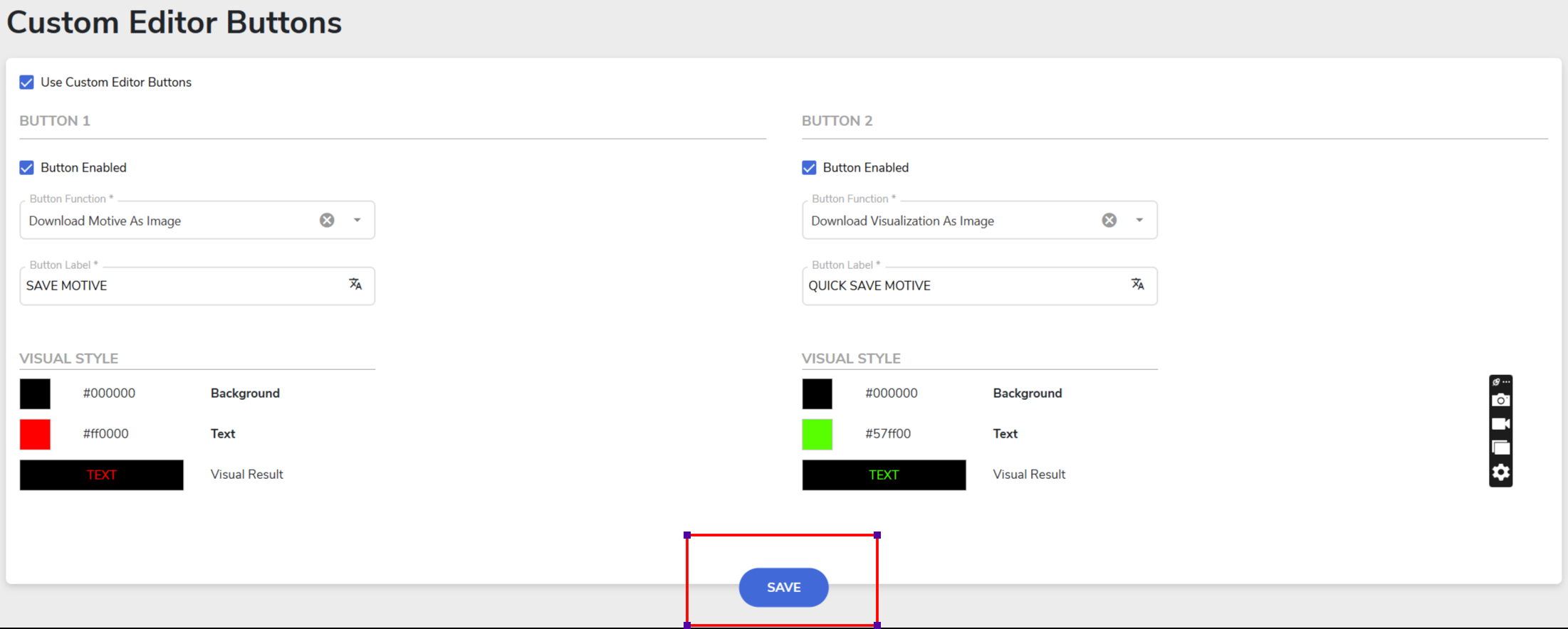

After any changes are performed do not forget to SAVE
those, the save button always can be found at the bottom of the current window
General Settings:
Button text translations:
